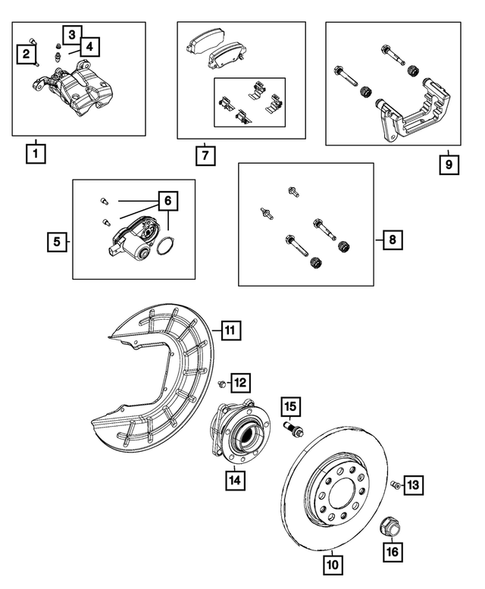

Rear Brakes for 2020 Fiat 500X
No.
Part # / Description / Price
Price
1
Disc Brake Caliper Assembly, Left 1
Mopar
Mopar Notes: Engines: 1.3L I4 Turbo MAir DI Engine w/ESS. Transmissions: 9-SPD 948TE AWD AUTO TRANS.
Description: Rear.
Not For Sale
Not For Sale
1
Disc Brake Caliper Assembly, Right 1 Mopar
Mopar Notes: Engines: 1.3L I4 Turbo MAir DI Engine w/ESS. Transmissions: 9-SPD 948TE AWD AUTO TRANS.
Description: Rear.
Not For Sale
Not For Sale
2
Brake Mounting Bolt Mopar
Mopar Notes: Engines: 1.3L I4 Turbo MAir DI Engine w/ESS. Transmissions: 9-SPD 948TE AWD AUTO TRANS.
Description: HEX HEAD TAPPING
Not For Sale
Not For Sale
3
Bleeder Cap Mopar
Mopar Notes: Engines: 1.3L I4 Turbo MAir DI Engine w/ESS. Transmissions: 9-SPD 948TE AWD AUTO TRANS.
Description: BLEEDER
4
Bleeder Screw Mopar
Mopar Notes: Engines: 1.3L I4 Turbo MAir DI Engine w/ESS. Transmissions: 9-SPD 948TE AWD AUTO TRANS.
Not For Sale
Not For Sale
5
Park Brake Actuator Mopar
Mopar Notes: Engines: 1.3L I4 Turbo MAir DI Engine w/ESS. Transmissions: 9-SPD 948TE AWD AUTO TRANS.
Not For Sale
Not For Sale
6
Disc Brake Bolt Kit Mopar
Mopar Notes: Engines: 1.3L I4 Turbo MAir DI Engine w/ESS. Transmissions: 9-SPD 948TE AWD AUTO TRANS.
Not For Sale
Not For Sale
7
Rear Disc Brake Pad Kit Mopar
Mopar Notes: Engines: 1.3L I4 Turbo MAir DI Engine w/ESS. Transmissions: 9-SPD 948TE AWD AUTO TRANS.
Description: REAR DISC BRAKE
MSRP $132.00
$87.61
MSRP $132.00
$87.61
8
Disc Brake Pin Kit Mopar
Mopar Notes: Engines: 1.3L I4 Turbo MAir DI Engine w/ESS. Transmissions: 9-SPD 948TE AWD AUTO TRANS.
Description: Includes Bushings And Bolts. Kit Includes 2 Boots and 2 Bolts.
Not For Sale
Not For Sale
10
Brake Rotor Mopar
Mopar Notes: Engines: 1.3L I4 Turbo MAir DI Engine w/ESS. Transmissions: 9-SPD 948TE AWD AUTO TRANS.
Description: Rear.
Not For Sale
Not For Sale
11
Brake Shield, Left Mopar
Mopar Notes: Engines: 1.3L I4 Turbo MAir DI Engine w/ESS. Transmissions: 9-SPD 948TE AWD AUTO TRANS.
Description: After 02/16/2018.
Not For Sale
Not For Sale
11
Brake Shield, Right Mopar
Mopar Notes: Engines: 1.3L I4 Turbo MAir DI Engine w/ESS. Transmissions: 9-SPD 948TE AWD AUTO TRANS.
Description: After 02/16/2018.
Not For Sale
Not For Sale
12
Hex Flange Head Bolt Mopar
Mopar Notes: Engines: 1.3L I4 Turbo MAir DI Engine w/ESS. Transmissions: 9-SPD 948TE AWD AUTO TRANS.
Description: M6x1.00x10.00. Splash Shield Attaching. Rear Splash Shield to Knuckle. Front Splash Shield to Knuckle. Dust Shield to Knuckle. Rear Brake Hose Bracket to Knuckle.
Not For Sale
Not For Sale
13
Hex Head Bolt Mopar
Mopar Notes: Engines: 1.3L I4 Turbo MAir DI Engine w/ESS. Transmissions: 9-SPD 948TE AWD AUTO TRANS.
Description: M10x1.25x17.00. Rotor To Hub.
Not For Sale
Not For Sale
14
Wheel Hub And Bearing Mopar
Mopar Notes: Engines: 1.3L I4 Turbo MAir DI Engine w/ESS. Transmissions: 9-SPD 948TE AWD AUTO TRANS.
Description: All Countries. 4x4.
Not For Sale
Not For Sale
15
6 Lobe External Head Bolt Mopar
Mopar Notes: Engines: 1.3L I4 Turbo MAir DI Engine w/ESS. Transmissions: 9-SPD 948TE AWD AUTO TRANS.
Description: M12x1.75x45.00. Front Bearing to Knuckle. All Countries. Rear Bearing to Knuckle. Bearing Hub Assembly to Knuckle. Vehicles Built Up to 11/27/2012. For Vehicles Built 11/28/2012 and After, Must Order Lower Control Arm. Dust Shield Attaching. Wheel Hub.
MSRP $14.85
$10.63
MSRP $14.85
$10.63
16
Hex Flange Lock Nut Mopar
Mopar Notes: Engines: 1.3L I4 Turbo MAir DI Engine w/ESS. Transmissions: 9-SPD 948TE AWD AUTO TRANS.
Description: M24x1.5. Spindle Nut. Axle Shaft Spindle. All Countries. Left Front Half Shaft to Bearing. Rear Half Shaft to Hub Up To 03/31/14. Axle Shaft to Hub. Frt half shaft to bearing.
Not For Sale
Not For Sale
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
